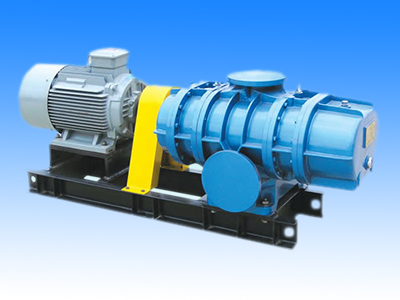

3L41WD、3L42WD型羅茨鼓風機
產品詳細介紹
|
風機型號 |
轉速n r/min |
升壓 Δp |
進口流量Q m3/min |
軸功率Kw |
配套電機 |
噪音dB(A) |
整機重Kg |
||
|
Kpa |
mmH2O |
型號 |
功率Kw |
||||||
|
3L41WD |
980 |
9.8 |
1000 |
7.45 |
2 |
Y132S-6 |
3 |
70.8 |
567 |
|
19.6 |
2000 |
6.76 |
3.67 |
Y132M2-6 |
5.5 |
70.9 |
585 |
||
|
29.4 |
3000 |
6.22 |
5.13 |
Y160M-6 |
7.5 |
71 |
623 |
||
|
39.2 |
4000 |
5.85 |
6.63 |
Y160M-6 |
7.5 |
71.9 |
623 |
||
|
49 |
5000 |
5.44 |
8.2 |
Y160L-6 |
11 |
72.9 |
647 |
||
|
58.8 |
6000 |
5.14 |
9.66 |
Y160L-6 |
11 |
73.3 |
647 |
||
|
68.6 |
7000 |
4.86 |
11.15 |
Y180L-6 |
15 |
73.5 |
671 |
||
|
78.4 |
8000 |
4.60 |
12.62 |
Y180L-6 |
15 |
73.9 |
671 |
||
|
1450 |
9.8 |
1000 |
11.95 |
3.60 |
Y112M-4 |
4 |
76.7 |
553 |
|
|
19.6 |
2000 |
11.33 |
5.72 |
Y132M-4 |
7.5 |
77.6 |
581 |
||
|
29.4 |
3000 |
10.85 |
7.95 |
Y160M-4 |
11 |
78.6 |
620 |
||
|
39.2 |
4000 |
10.44 |
10.20 |
Y160L-4 |
15 |
78.6 |
644 |
||
|
49 |
5000 |
10.10 |
12.44 |
Y160L-4 |
15 |
79.1 |
644 |
||
|
58.8 |
6000 |
9.82 |
14.71 |
Y180M-4 |
18.5 |
79.6 |
676 |
||
|
68.6 |
7000 |
9.57 |
16.95 |
Y180M-4 |
18.5 |
80.4 |
676 |
||
|
78.4 |
8000 |
9.32 |
19.25 |
Y180L-4 |
22 |
81 |
696 |
||
|
風機型號 |
轉速n r/min |
升壓 Δp |
進口流量Q m3/min |
軸功率Kw |
配套電機 |
噪音dB(A) |
整機重Kg |
||
|
Kpa |
mmH2O |
型號 |
功率Kw |
||||||
|
3L42WD |
980 |
9.8 |
1000 |
11.80 |
3 |
Y132M1-6 |
4 |
68.7 |
617 |
|
19.6 |
2000 |
10.96 |
5.5 |
Y160M-6 |
7.5 |
70.4 |
657 |
||
|
29.4 |
3000 |
10.32 |
7.7 |
Y160L-6 |
11 |
72 |
681 |
||
|
39.2 |
4000 |
9.85 |
9.95 |
Y160L-6 |
11 |
73.8 |
681 |
||
|
49 |
5000 |
9.35 |
12.3 |
Y180L-6 |
15 |
74.3 |
721 |
||
|
58.8 |
6000 |
9.00 |
14.5 |
Y200L1-6 |
18.5 |
75.2 |
771 |
||
|
68.6 |
7000 |
8.60 |
16.7 |
Y200L1-6 |
18.5 |
76.9 |
771 |
||
|
78.4 |
8000 |
8.20 |
19.0 |
Y200L2-6 |
22 |
77.9 |
789 |
||
|
風機型號 |
轉速n r/min |
升壓 Δp |
進口流量Q m3/min |
軸功率Kw |
配套電機 |
噪音dB(A) |
整機重Kg |
||
|
Kpa |
mmH2O |
型號 |
功率Kw |
||||||
|
3L42WD |
1450 |
9.8 |
1000 |
18.40 |
5.96 |
Y132M－4 |
7.5 |
75.9 |
604 |
|
19.6 |
2000 |
17.65 |
9.10 |
Y160M－4 |
11 |
75.1 |
654 |
||
|
29.4 |
3000 |
17.10 |
12.25 |
Y160L－4 |
15 |
76.5 |
678 |
||
|
39.2 |
4000 |
16.55 |
15.45 |
Y180M－4 |
18.5 |
77.7 |
710 |
||
|
49 |
5000 |
16.17 |
18.75 |
Y180L－4 |
22 |
78.2 |
730 |
||
|
58.8 |
6000 |
15.85 |
22.00 |
Y200L－4 |
30 |
79.3 |
791 |
||
|
68.6 |
7000 |
15.50 |
25.30 |
Y200L－4 |
30 |
80.6 |
791 |
||
